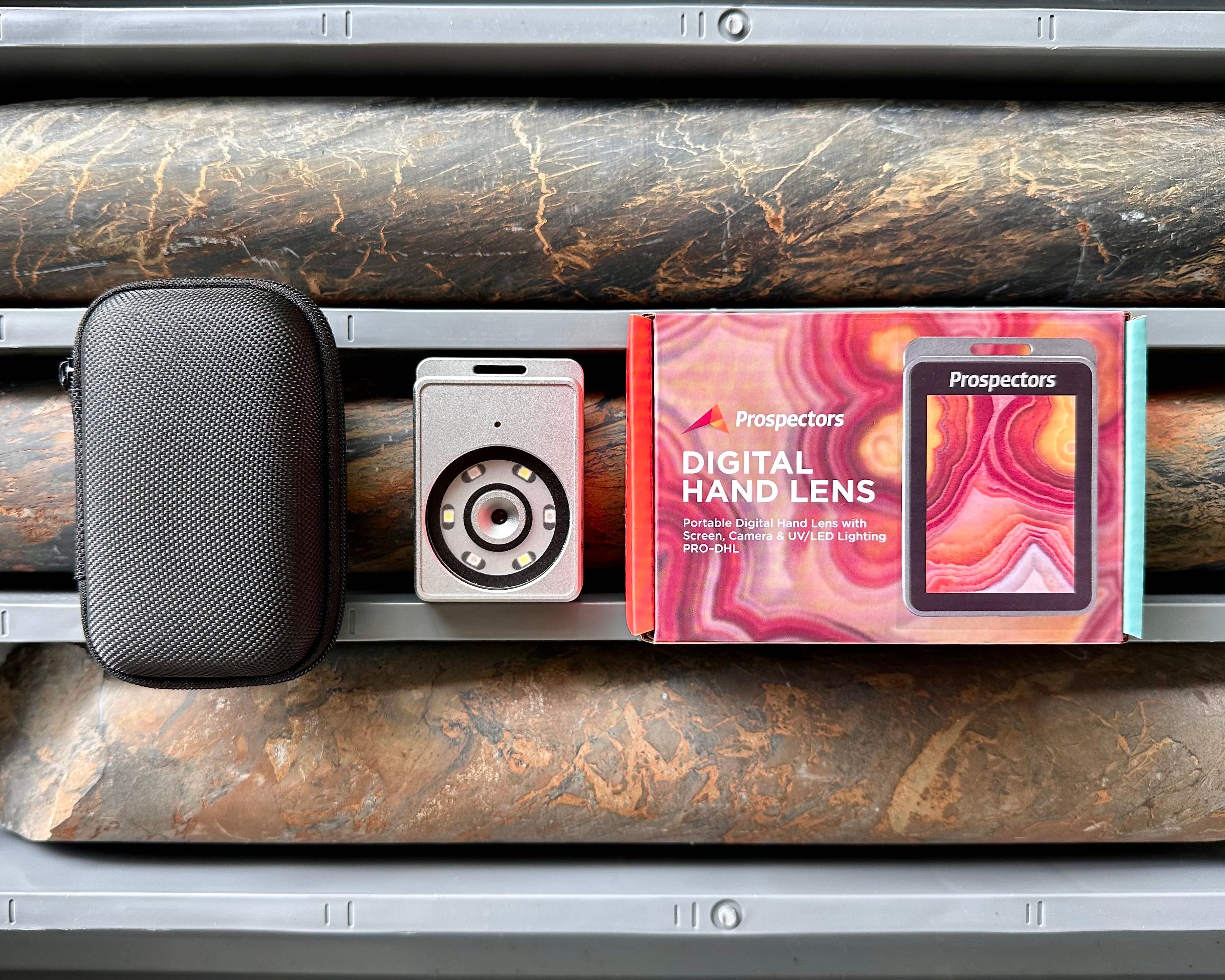

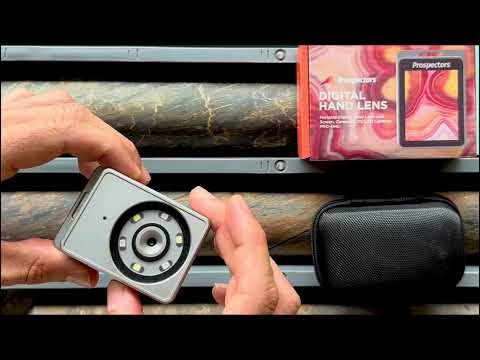

Prospectors® Digital Hand Lens Camera

Portable Digital Magnifier for Professional Field Inspection with Photo Capture

The Prospectors Digital Hand Lens Camera is a compact field inspection tool designed for professionals who require clear magnified viewing and reliable still-image documentation in operational environments.

Combining traditional loupe-style magnification with integrated digital photography, it enables users to inspect fine surface detail and capture images directly in the field. Suitable for geological surveys, ecological fieldwork, archaeological assessment, forestry operations, emergency services applications and research environments.

Designed for Field Work

This portable digital magnifier is suited to situations where:

• Surface detail must be examined closely

• Observations need to be recorded photographically

• Equipment must be compact and transportable

• Work is conducted on-site or outdoors

Its lightweight form allows it to fit easily into field kits, survey packs and response bags.

Key Features

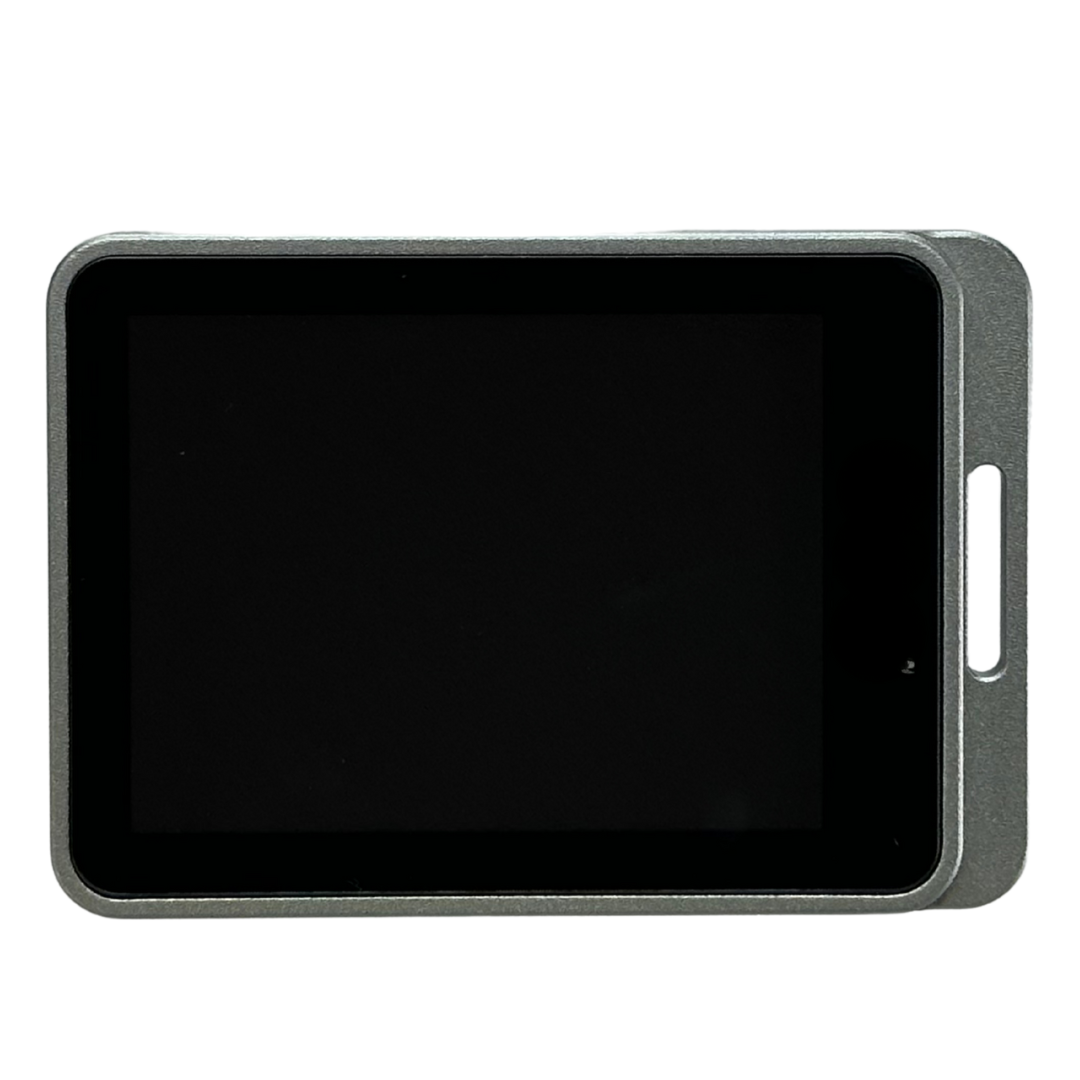

Digital Magnification with Integrated Screen
Clear on-screen viewing reduces eye strain compared to traditional eyepiece loupes.

Still Image Capture
Capture high-resolution images directly to microSD for documentation, reporting, research records or teaching purposes.

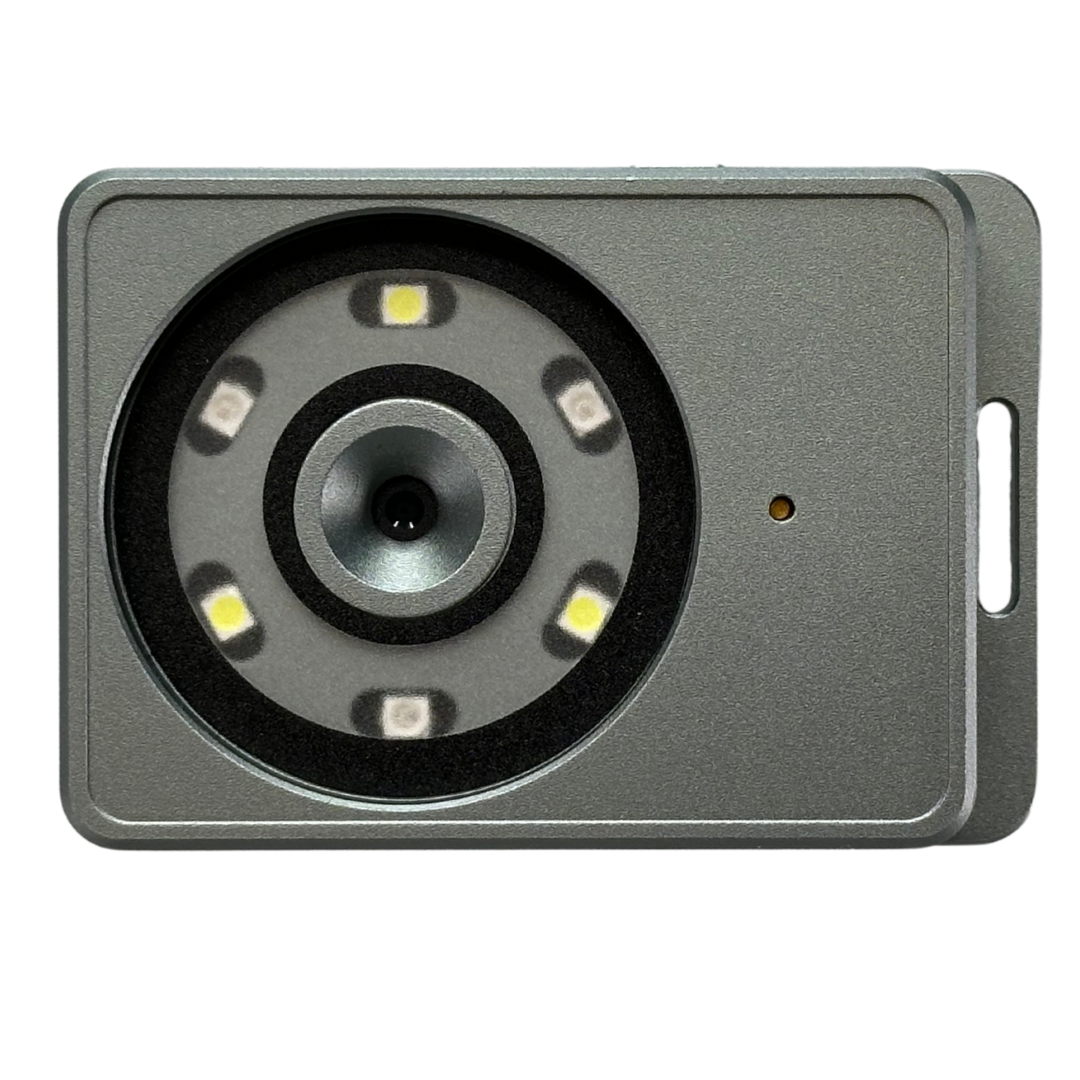

Dual Illumination (White LED & UV LED)

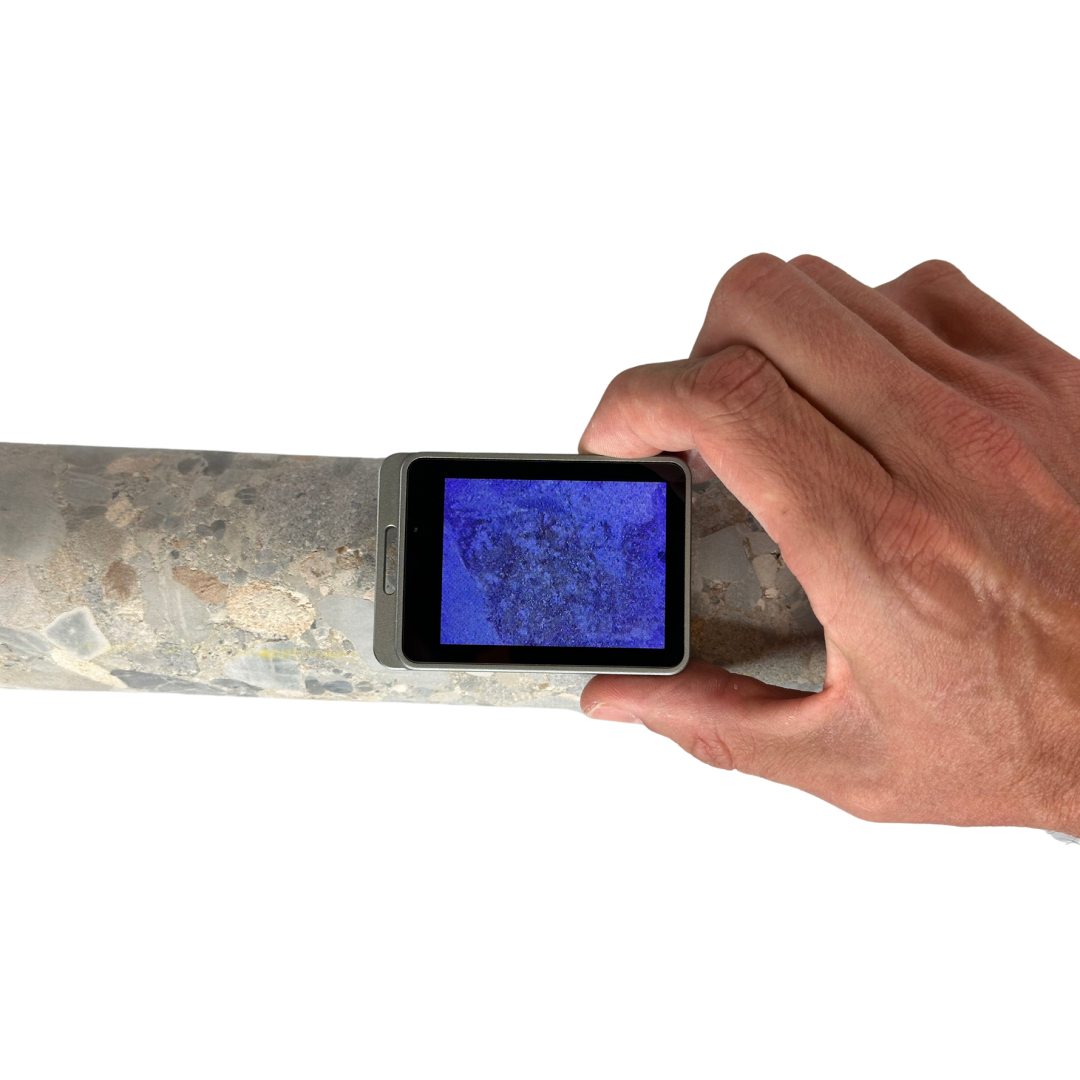

Three white LEDs provide consistent lighting for surface inspection, while three UV LEDs support fluorescence viewing where required.

Multiple Magnification Levels
Selectable 7×, 12× and 19× magnification to suit varying inspection tasks.

Compact & Rechargeable

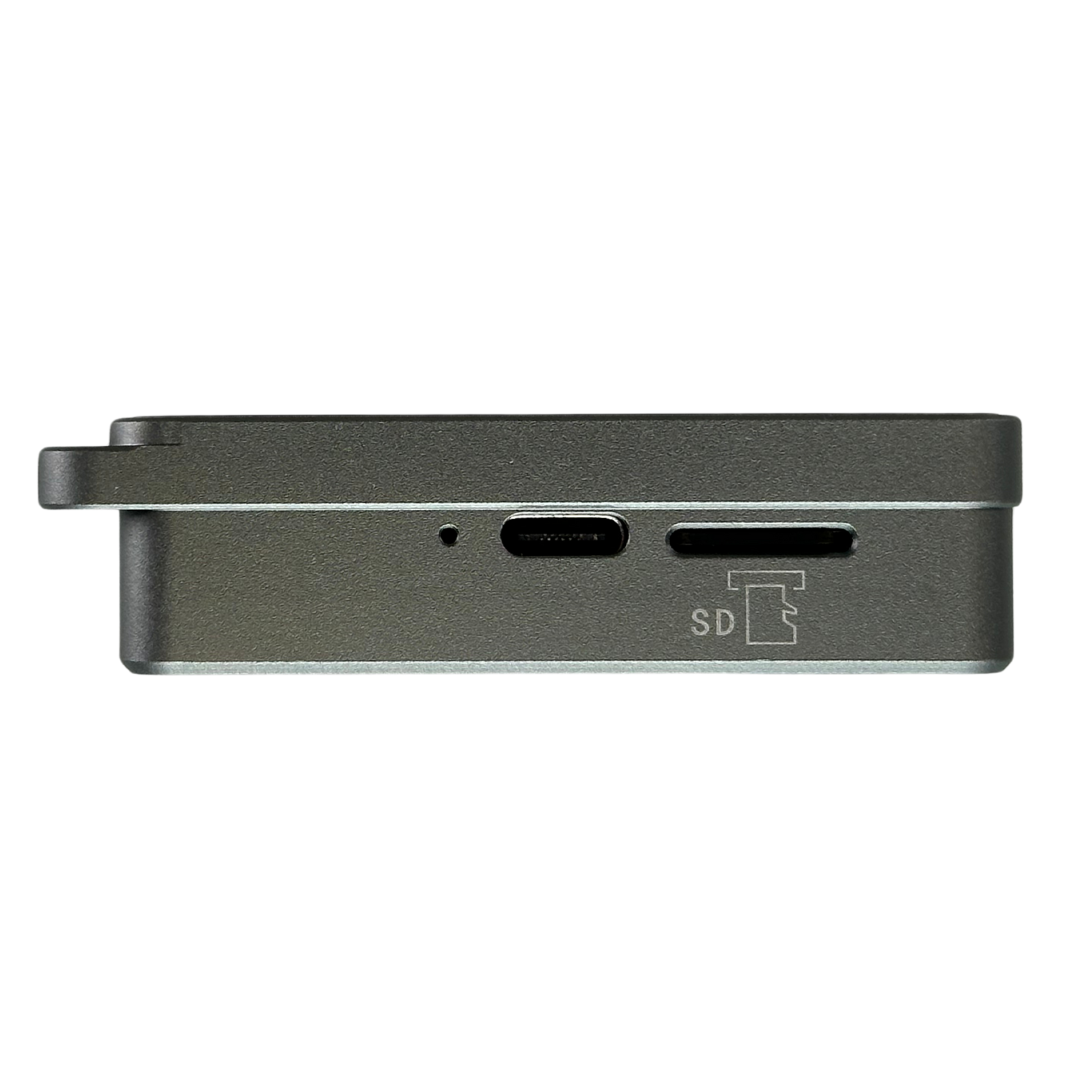

Built-in lithium battery allows operation away from mains power and recharges via USB.

Durable Construction
Aluminium body designed for practical field use.

Specifications

• Display: 2.4″ LCD (320 × 240 resolution)

• Camera Sensor: 1/4″ CMOS, 1280 × 720 resolution

• Magnification: 7× / 12× / 19×

• Focus Distance: 8 mm – 12 mm

• Lighting: 3 × white LED, 3 × UV LED

• Battery: Built-in 3.7 V 300 mAh lithium battery

  • Approx. 60 minutes use

  • Approx. 40 minutes charge time

• Dimensions: Approx. 48 × 69 × 18 mm

• Weight: Approx. 76 g

• Storage: microSD card (pre-installed)

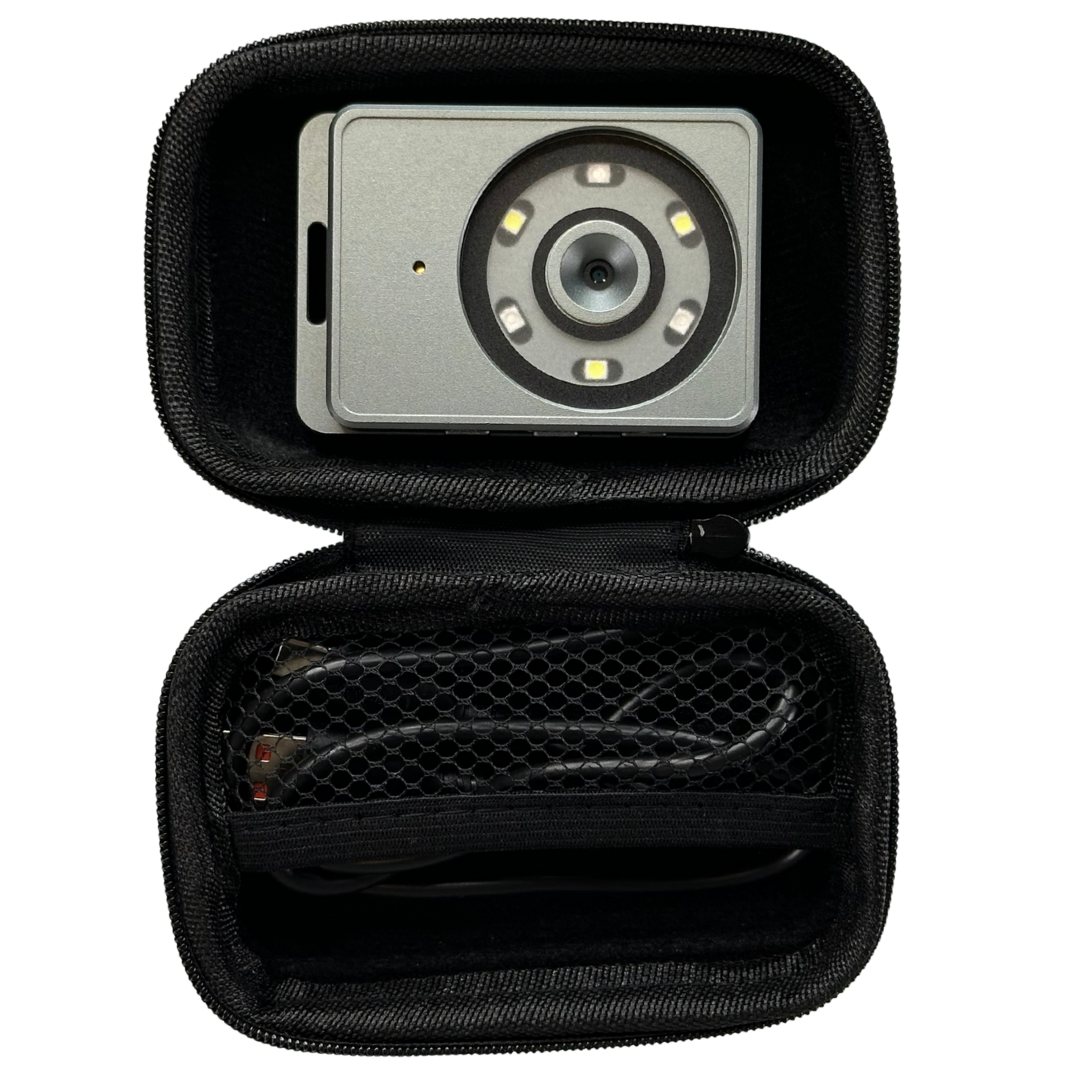

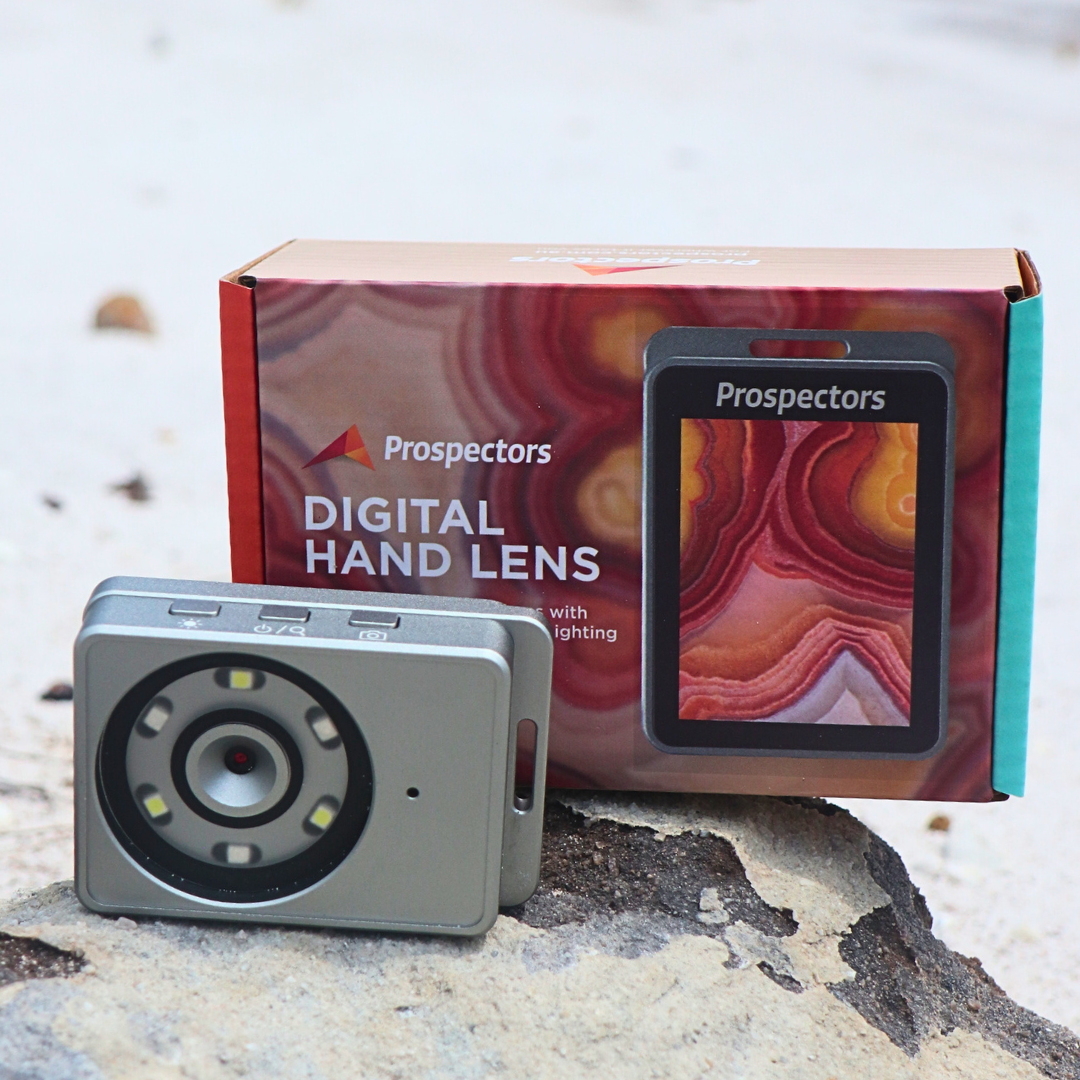

• Includes: USB charging cable, protective case, cleaning cloth

Field Applications

The Prospectors Digital Hand Lens Camera is used across a range of professional field disciplines, including:

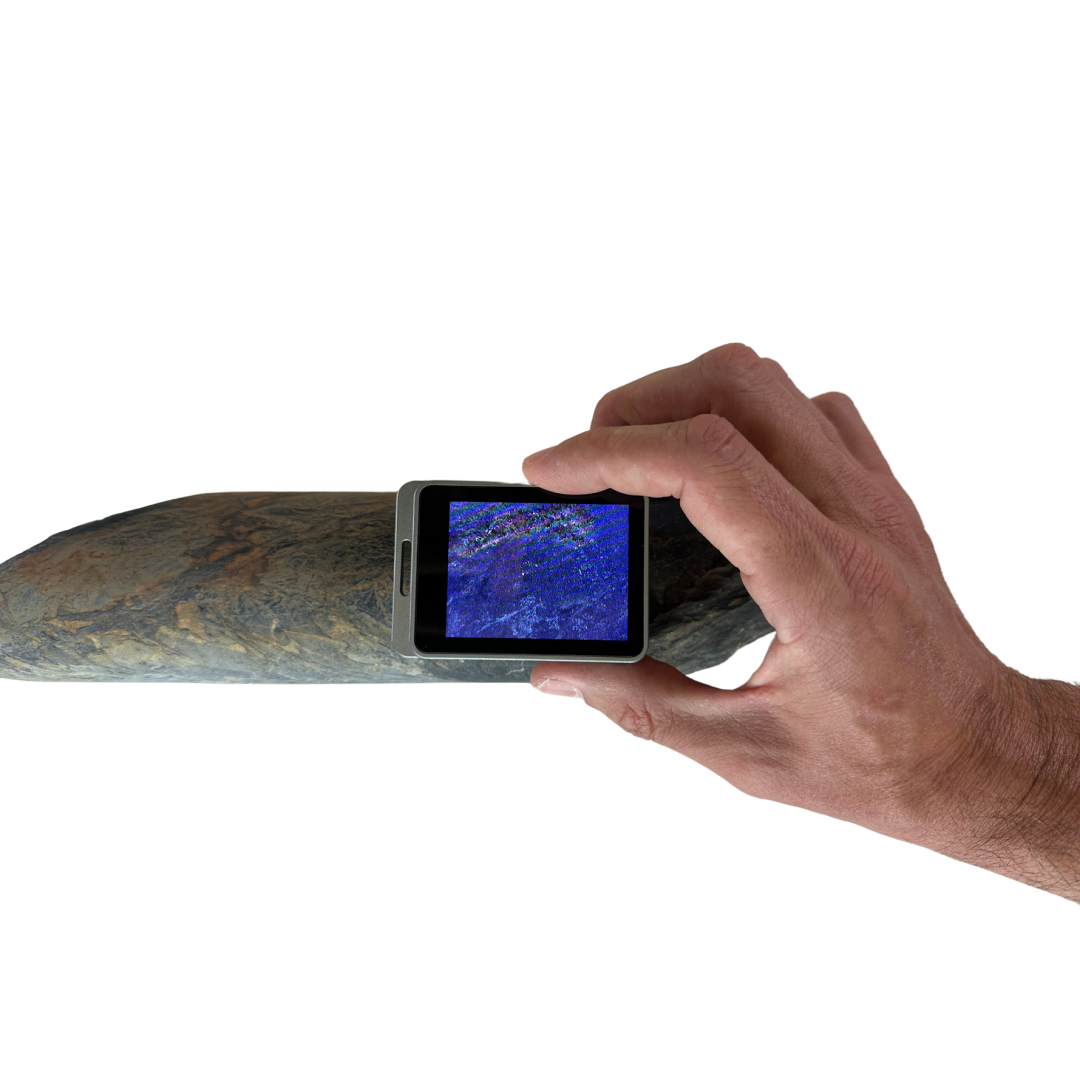

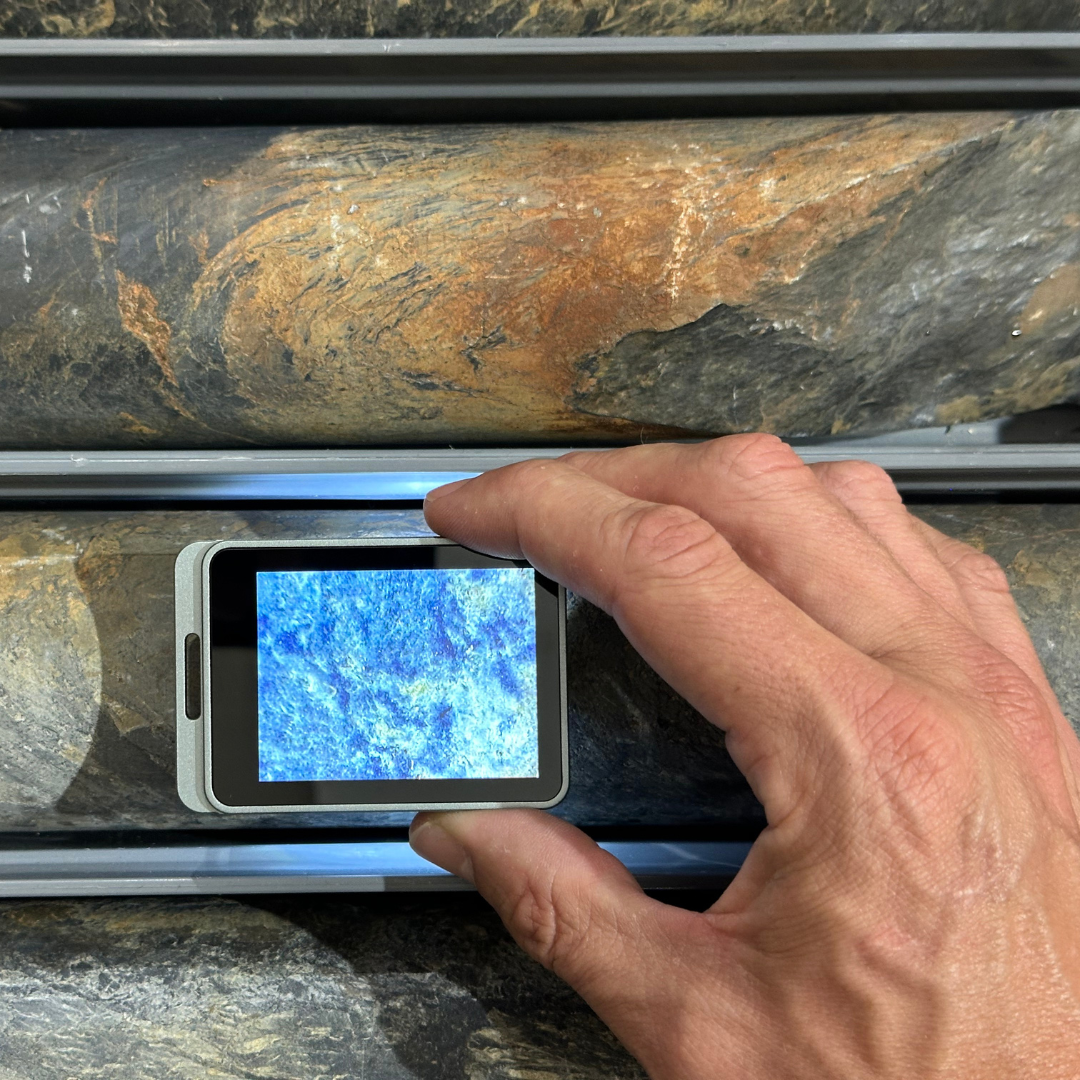

• Geology – rock, mineral and surface inspection

• Environmental Science – soil, sediment and material examination

• Archaeology & Heritage – artifact detail inspection and condition recording

• Forestry – bark, timber and surface assessment

• Ecology & Field Biology – plant and specimen documentation

• Forensics – close surface detail examination

• Fire Investigation – material and burn pattern inspection

• Research & Universities – field teaching and sample documentation

Prospectors Digital Hand Lens vs Traditional Hand Lens

A traditional loupe remains suitable for quick inspection, while the Prospectors Digital Hand Lens adds photographic documentation capability, supporting reporting, teaching and record-keeping.
