Haglof Sweden Vertex Laser Geo 2 - Laser & Ultrasound Hypsometer

Haglof Sweden Vertex Laser Geo 2 - Hypsometer

Professional Laser & Ultrasound Rangefinder

The Vertex Laser Geo 2 is the industry standard when it comes to accurate, reliable and versatile distance, angle and height measurement in challenging outdoor environments.

Built to endure rugged field conditions, this advanced instrument integrates laser rangefinding, ultrasound, 3D tilt sensors, electronic compass, GPS, and smart data management in one compact unit. Whether you’re measuring tree heights in dense forest, mapping survey plots, calculating safe powerline clearance, or monitoring environmental changes, the Vertex Laser Geo 2 delivers the accuracy and efficiency demanded by professionals.

Advanced Measurement Capabilities

• Dual-Mode Rangefinding:

  • Laser – Long-distance, high-accuracy measurement up to approx. 700 m with ~4 cm precision.

  • Ultrasound – Ideal for close-range measurements or dense undergrowth where lasers may be obstructed, effective up to 30 m.

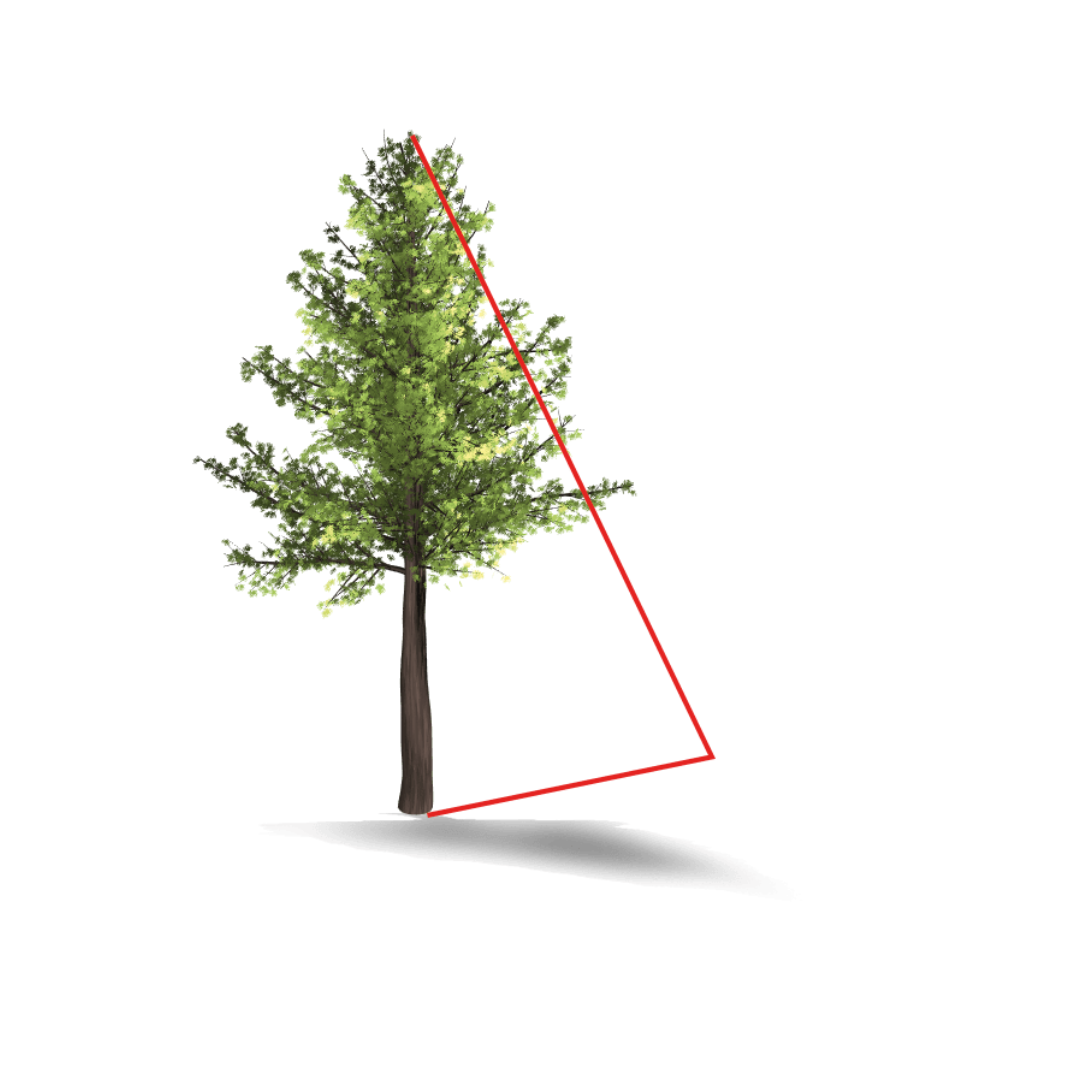

• Height Measurement Flexibility: Choose from 1-point, 2-point, 3-point or direct measurement depending on the application. This flexibility is especially useful for forestry work where line of sight and terrain vary.

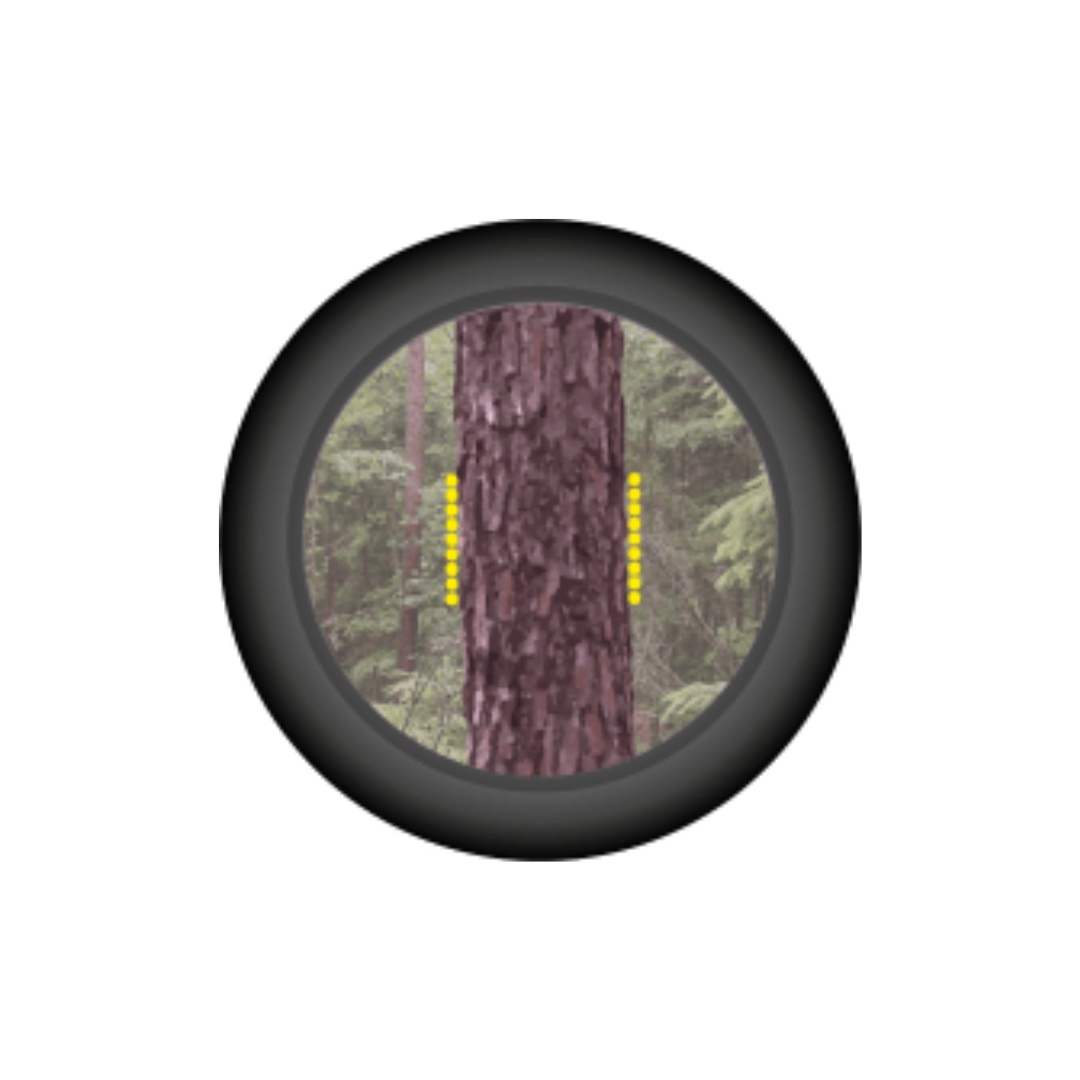

• Remote Diameter Measurement: Measure diameters quickly and safely from the ground by turning the instrument 90°. Results are displayed immediately both in the heads-up view and on the external display.

• 3D Vector Measurements: Built-in tilt and compass sensors provide full three-dimensional data capture — distances, angles, slopes and vectors can all be measured in one operation.

Integrated Positioning & Mapping

• High-Performance GPS: Equipped with a 33-channel GNSS receiver supporting GPS, GLONASS, Galileo and QZSS, with SBAS correction for improved positional accuracy (~2.5 m in open terrain).

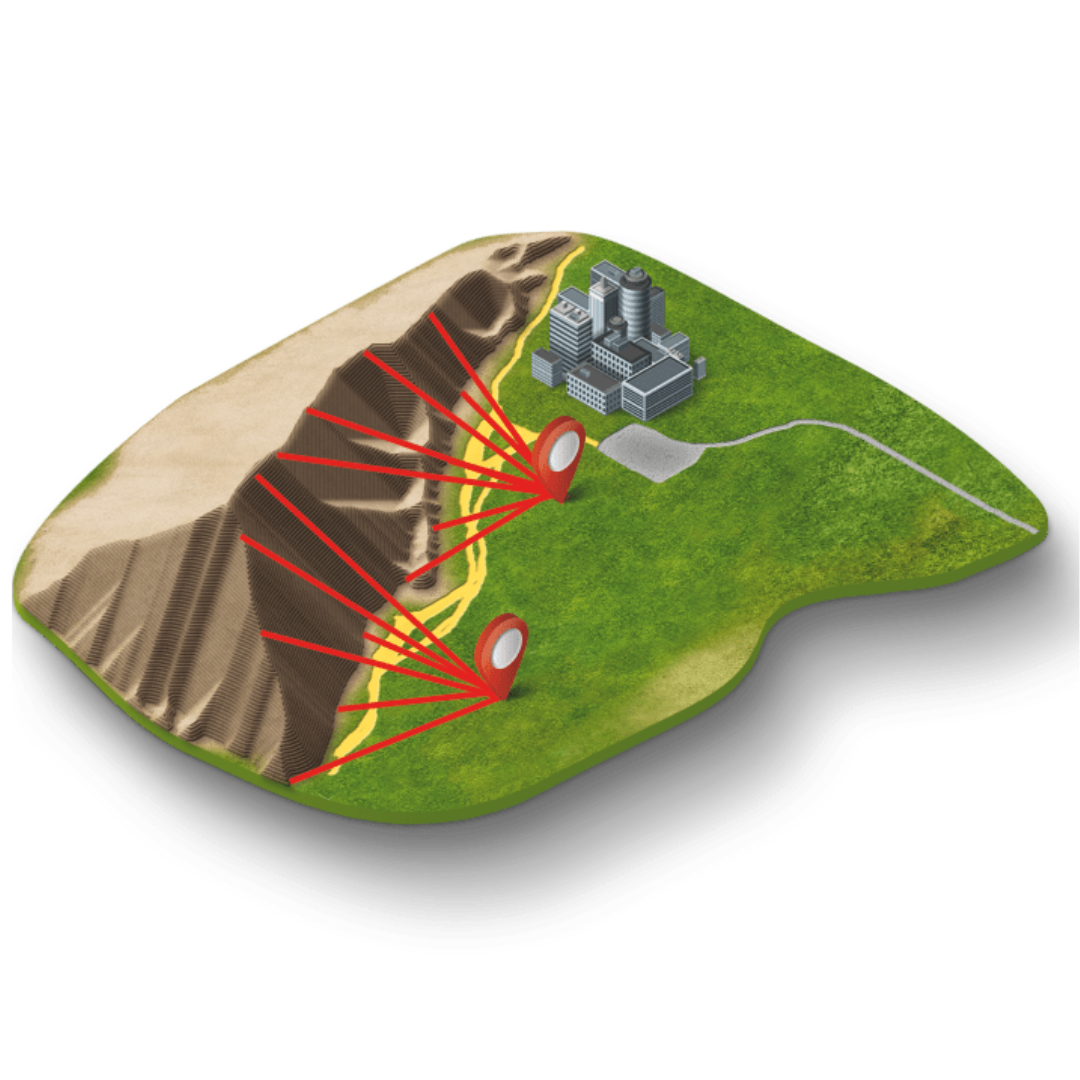

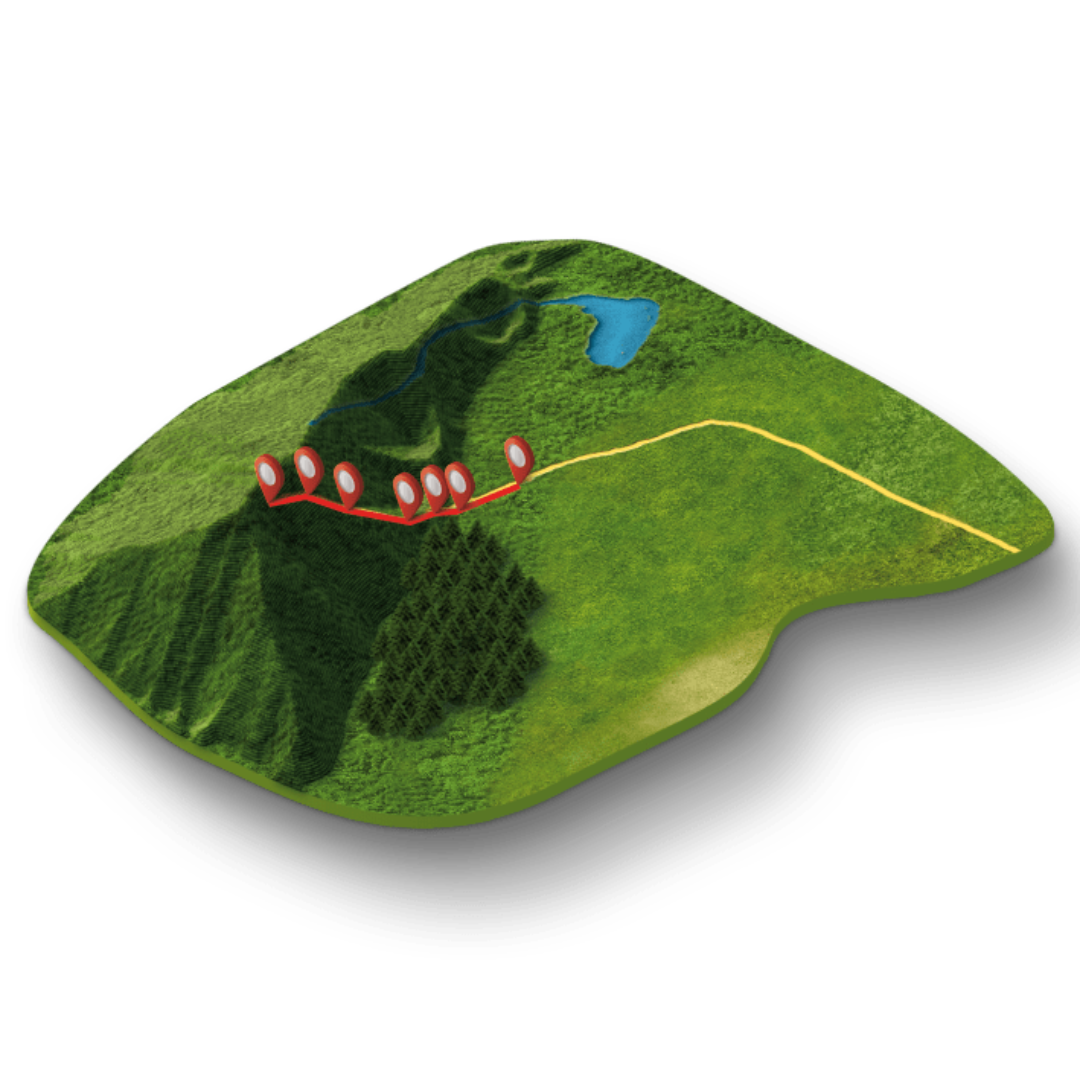

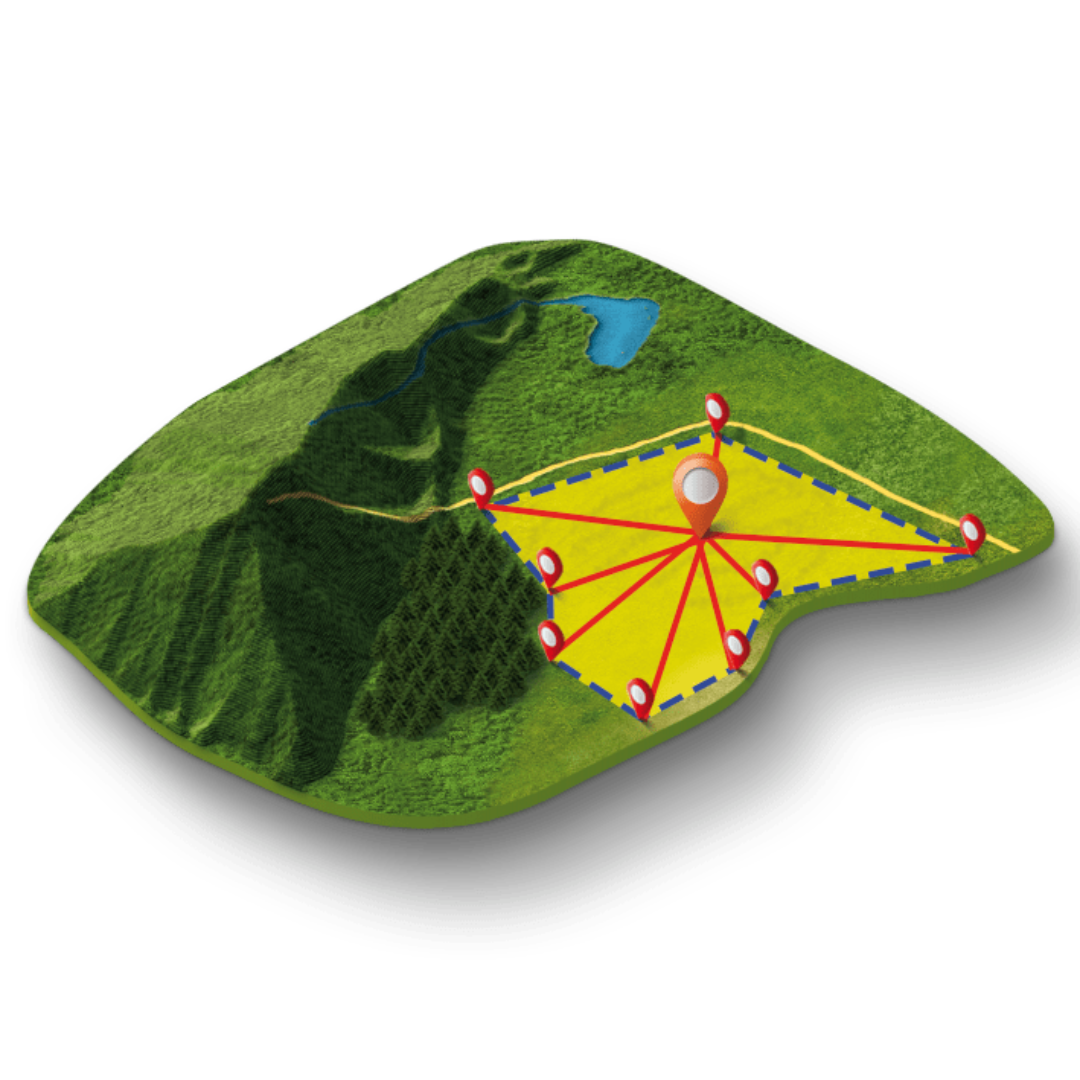

• Trail & Target Mapping: “Map Trail” and “Map Target” functions allow plotting of survey routes, forest stands, clear-cut areas or even stockpile surfaces.

• Data Export & Compatibility: Save readings in common formats including CSV, KML and NMEA/ASCII, ready for GIS integration or analysis.

Displays & User Interface

• Heads-Up Display: Keep your focus on the target while receiving instant feedback in the eyepiece.

• Graphic External Display: Clear visualisation of results and menus on the external screen, supporting field-friendly navigation and operation.

• Intuitive Menus: Simple button controls make it easy to switch modes, log data or check results even in gloves or harsh weather.

Durability & Power

• Field-Tough Construction: IP67 rated — resistant to dust, dirt and water, and fully functional from -20 °C to +45 °C.

• Lightweight & Portable: At just 243 g, the Vertex Laser Geo 2 is compact enough for all-day fieldwork without fatigue.

• Rechargeable Power: Internal Li-Ion battery provides approx. 2000 measurements per charge. USB and external SSD support extend storage and connectivity.

Key Applications

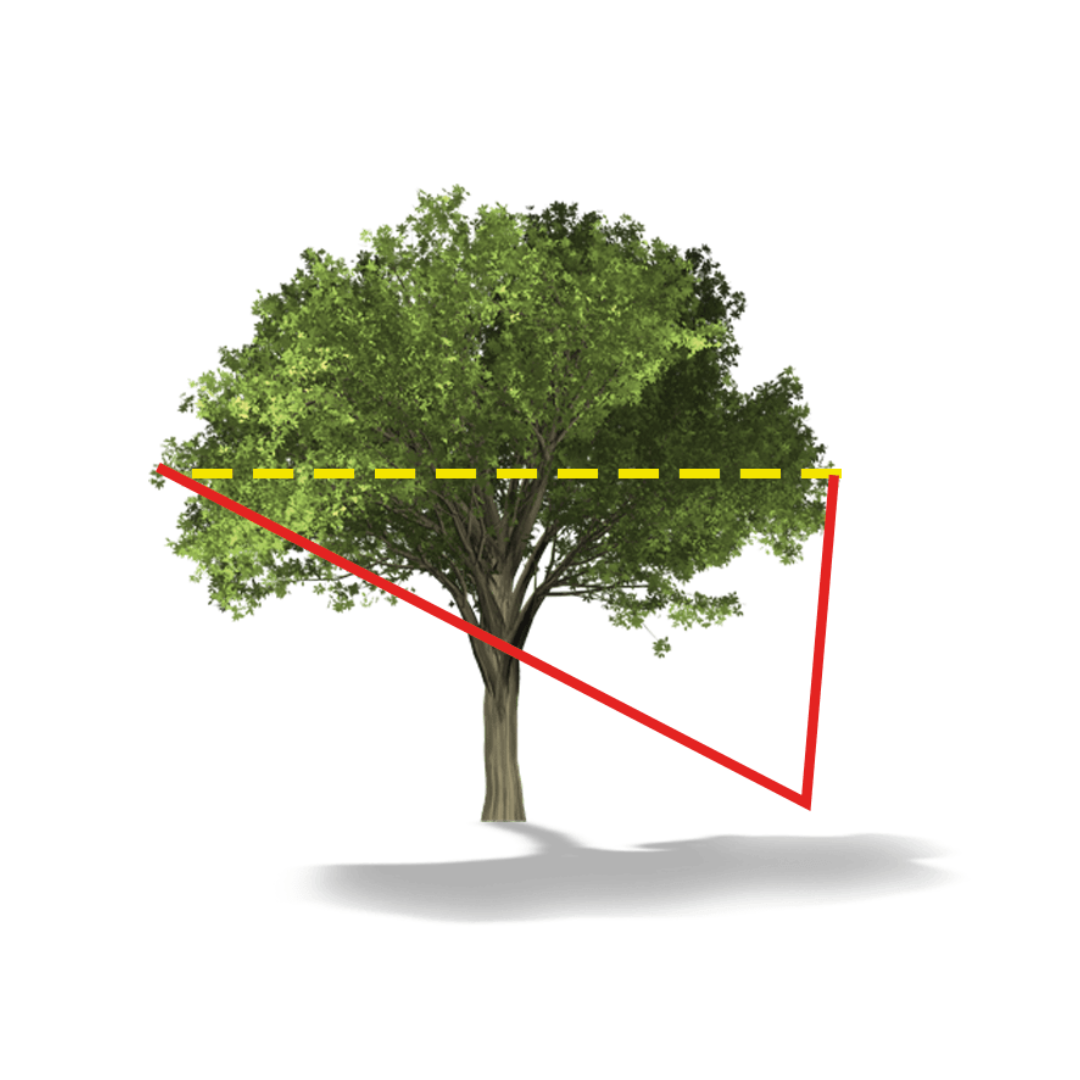

• Forestry & Environmental Sciences: Measure tree height, crown spread, DBH (diameter at breast height), and plot mapping.

• Surveying & Civil Engineering: Site mapping, terrain profiling, slope analysis and line clearance checks.

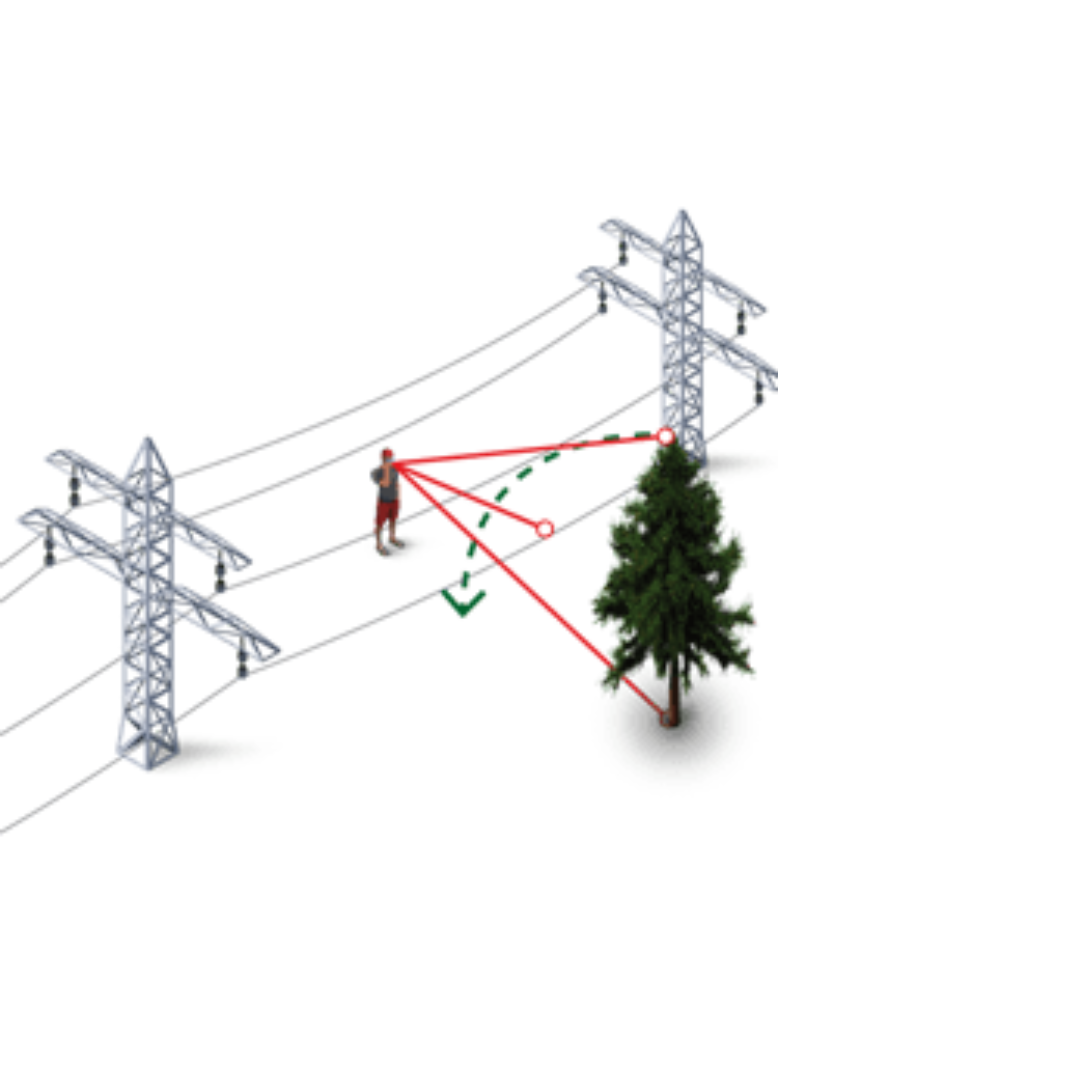

• Utility & Safety Assessments: Verify powerline clearances, hazard tree risks and vegetation encroachment.

• Mining & Industrial Use: Surface area mapping, pit measurements and volumetric calculations.

• Education & Research: Trusted in universities and research institutions for accurate, repeatable data collection.

Technical Specifications
