Haglof Laser GEO 2

Haglof Laser GEO 2

The Haglöf Laser GEO 2 is an advanced and highly customisable forestry measurement tool designed to handle complex tasks precisely and efficiently. This versatile device is packed with cutting-edge features, making it ideal for measuring distances, angles, and heights in forestry applications. Map and analyse forests and plantations with unparalleled accuracy. Whether you’re performing canopy measurements, mapping trails, or assessing timber, the Haglöf Laser GEO 2 is built to deliver reliable results in the field.

Key Features:

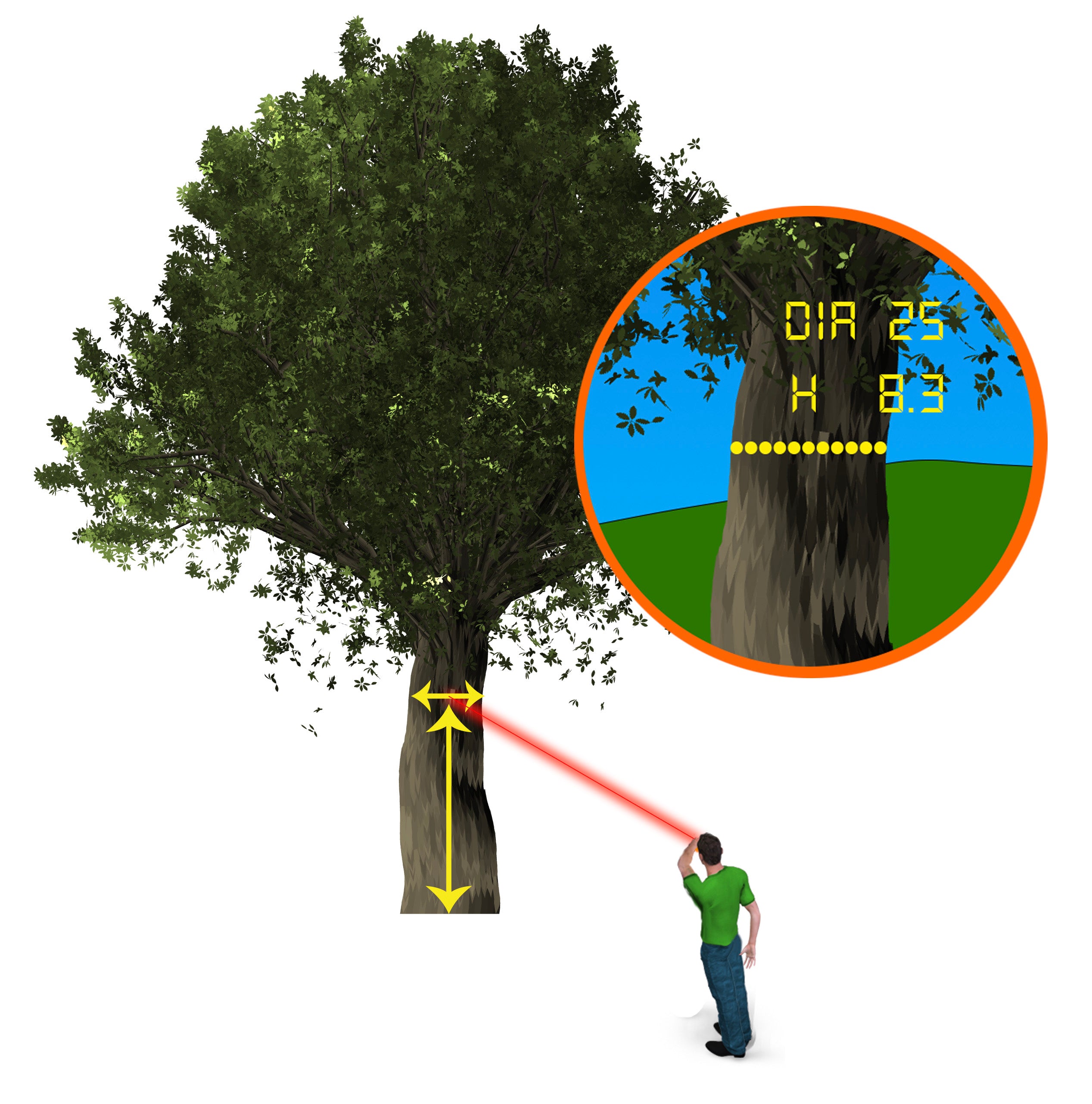

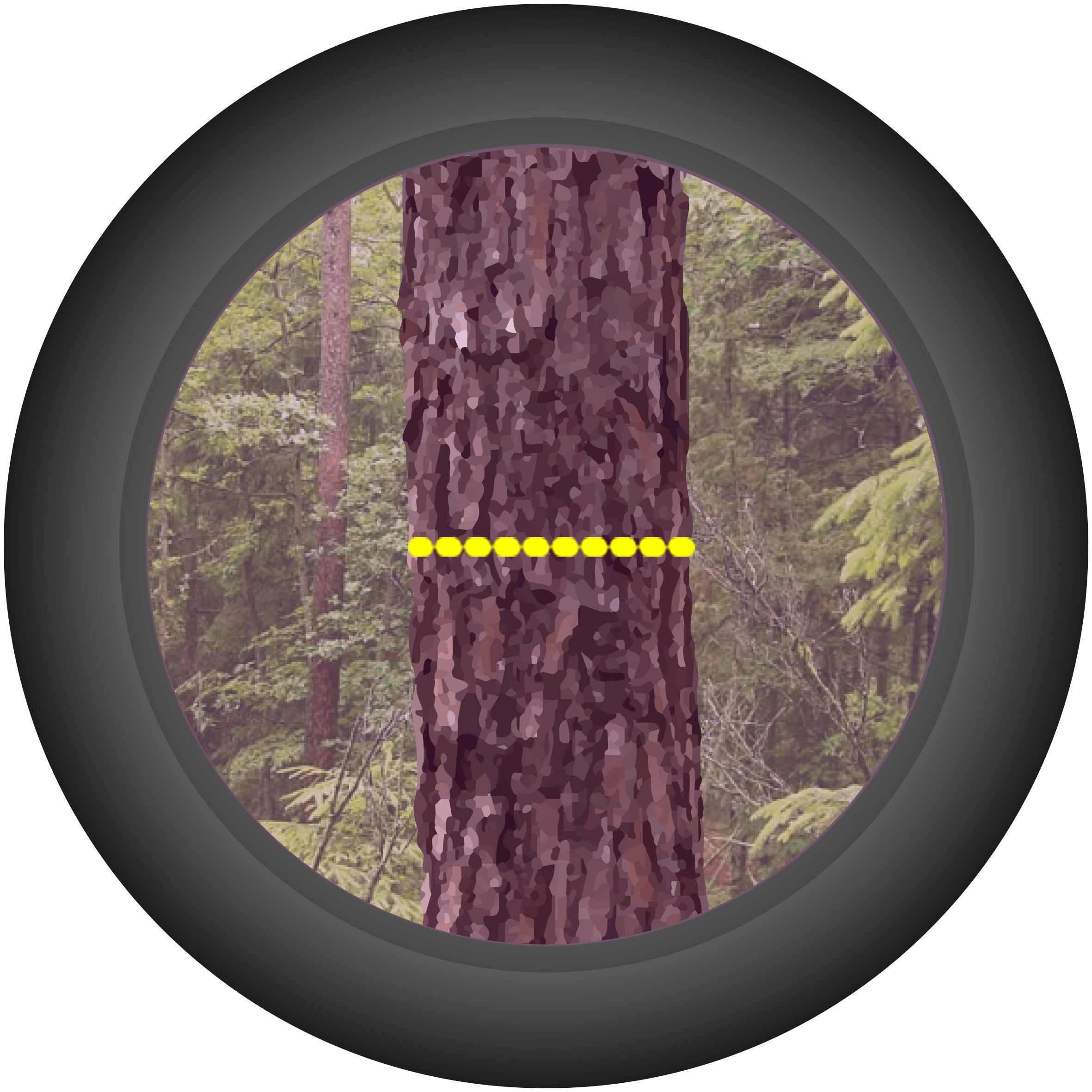

• Remote diameter measurement capability for accurate timber assessments at various heights.
• Multi-program functionality allows users to install custom applications and select modules on the go tailored to their specific needs.
• 3D vector and trail mapping capabilities enable precise area measurements, making it perfect for creating detailed maps of forested regions.

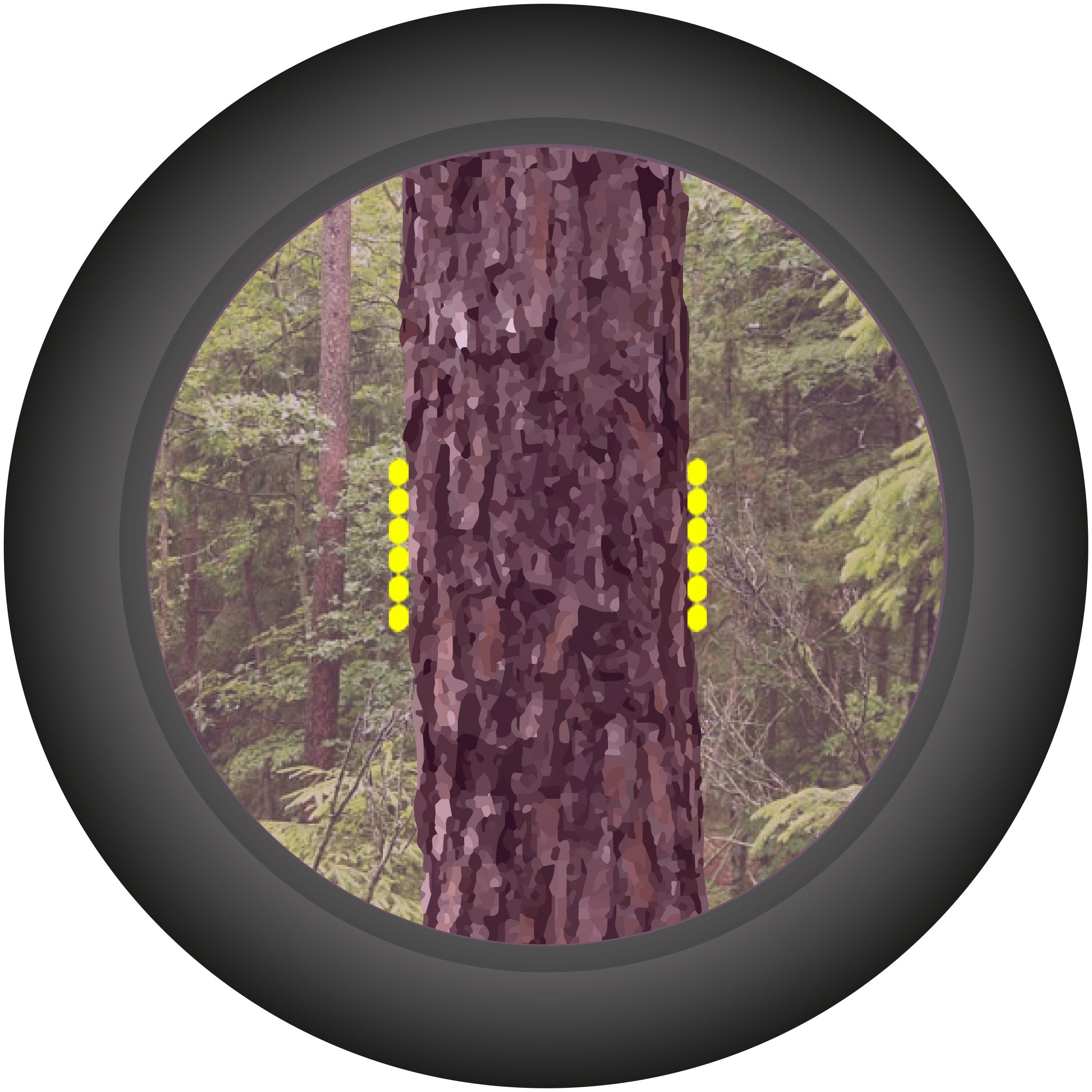

• Basal Area Function (BAF) for efficient line clearance and hazard tree assessments.
• Long-range laser measurement up to 700 metres (2000 feet) with a minimum distance of 0.5 metres, using integrated tilt and compass sensors for accurate 3D data.
• Customisable applications can be installed directly onto the device, and new features are continually added to expand its functionality.
• High-precision 3-point, 2-point, or 1-point height measurements offer flexible choices for measuring tree heights and other tall objects.
• A built-in GPS receiver supports GLONASS, Galileo, and QZSS systems, ensuring pinpoint accuracy in open terrain. An optional external Bluetooth GPS provides enhanced precision.
• Real-time data tagging with coordinates and the ability to export data in CSV and KML formats for easy integration with GIS systems or Google Earth.
• Heads-up display and graphical external display, providing clear visuals in the field.
• Data is stored on an integrated SSD with Bluetooth and USB connectivity, allowing seamless file transfer to PCs or mobile devices.

Additional Capabilities:

• 3D Pile Application: This specialised software expands the Laser GEO 2’s capabilities, allowing it to measure and calculate the volume of irregular stockpiles or log piles. It easily measures pile width, height, and wood volume, generating a comprehensive 3D image of your data points.
• Pits & Piles 3D Cloud Service: Access your measurements from any device via the Internet, edit them, and print them directly from the Haglöf Application Cloud.

Technical Specifications:

• Dimensions: 93 x 63 x 72 mm
• Weight: 243 g
• Battery: Rechargeable Li-ion battery, approximately 2000 measurements per charge, charging time 3.5 hours.
• Temperature Range: -20°C to +45°C
• Distance Accuracy: 0.1 m typical, with a resolution of 0.01 m.
• Angle Accuracy: 0.1° typical, 360° range.
• GPS Accuracy: 1-3 metres, or approximately 0.5 metres with external GPS.
• Water and Dust Ingress Rating: IP67-rated polycarbonate casing makes it waterproof and dustproof for harsh environments.

The Haglöf Laser GEO 2 excels in traditional forest planning tasks and offers customisation options and advanced functionality for complex operations like log pile volume estimation and trail mapping. Its rugged design and innovative features make it the ultimate tool for forestry professionals in Australia and beyond.

Enhance your forest management with superior precision, The Laser GEO 2 offers a future-proof solution with updates and custom applications tailored to your unique needs.
